Six Uniform Rods

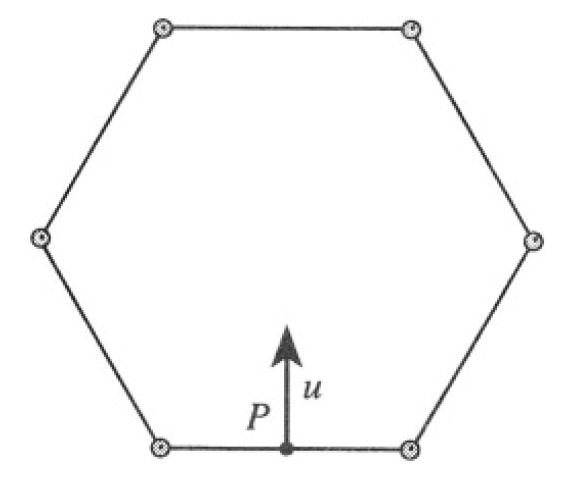

Six equal uniform rods, fastened at their ends by frictionless pivots, form a regular hexagon and lie on a frictionless surface. A blow is given at a right angle to the midpoint of one of them at point P in Figure 1.1 so that it begins to slide with velocity u. Show that the opposite rod begins to move with velocity v = u /10.

Figure 1.1

SOLUTION

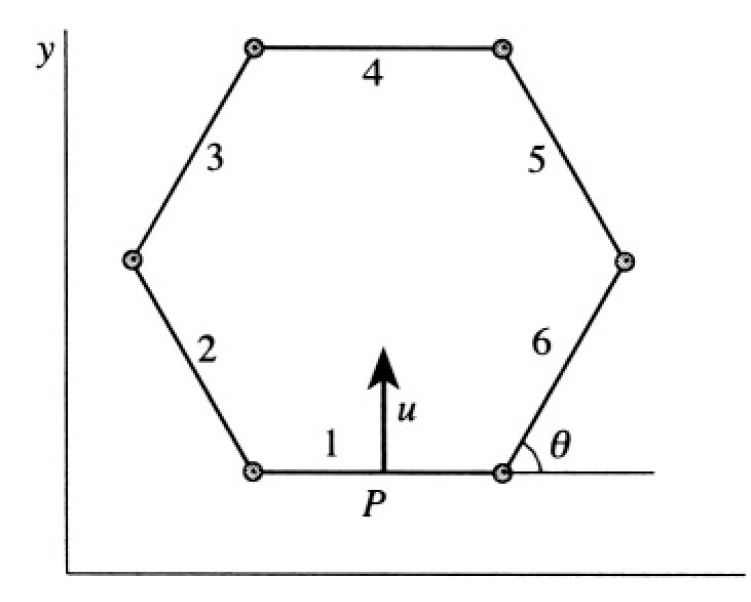

This problem, in general (after some arbitrary time t) is rather difficult. However we can use two important simplifications at t = 0. First, there is six fold symmetry, which means that the positions of the center of mass of each rod can be described by just one angle θ and, of course, the length of a rod, which we will denote as 2a. The other consideration is that even after the blow, the system will keep symmetry relative to the y-axis (because the blow is at midpoint of the first rod). That means that not only at t = 0, but also at later times, there will be no rotation of the system, and its angular momentum is zero. We choose the coordinate system as shown in Figure 1.2. Now the velocity of the center of mass (midpoint P) of the first

Figure 1.2

 rod is u = ẏ The velocity of the midpoint of the opposite one (rod 4) is ẏ + 4aθ cosθ since the coordinates of its center of mass are(x, y + 4a sinθ) We may try to use the condition P_θ = 0 to find a relation between  and ẏ. At t = 0, θ = π/3 for a regular hexagon and

where  is the Lagrangian of the system, which in this case is equal to its kinetic energy T

Where i = 1…6 are subsequent rods (see Figure 1.2). The kinetic energy of each rod consists of its energy relative to the center of mass plus the energy of its center of mass. Let us say that the mass of the rod is m. The energy relative to the center of mass will be the same for rods i = 2, 3, 5, 6 and equal to  where I_cm is the moment of inertia relative to the center of mass. We have already used I_cm. To calculate it, we can either integrate (which is very simple in this case) or use a more general approach, which can be applied in other problems with bodies possessing certain symmetries. In this case, we know that the moment of inertia of the rod is γmL², where L is the length of the rod and γ is some numerical factor. Now move to the edge of the rod. The moment of inertia I_e is

where L /2 is the distance between the edge and the center of mass. Here we have applied the parallel axis theorem. On the other hand, this I_e is nothing but half of the moment of inertia relative to the center of mass of a rod that is twice as long. So, we can write

The moment of inertia of the rod is then I = (1/12)mL². In our case, L = 2a, so I = (1/3)ma². We then arrive at

Now calculate the center of mass energy of each rod T_i = (m/2) (ẋ²_i + ẏ²_i):

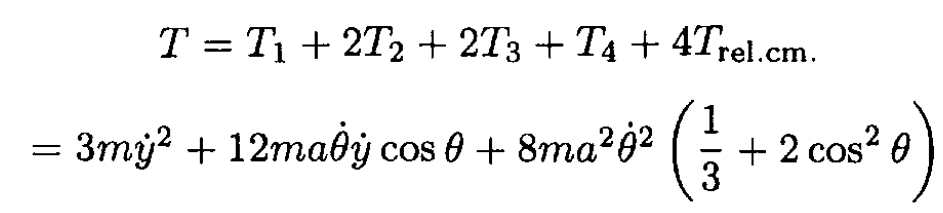

So the total kinetic energy is

Now we can calculate P_θ at θ = π/3:

So

Now recalling that ẏ = u, we get for the velocity of rod 4
