Conductivity

The drift current density, may be written as

(1)

where σ is the conductivity of the semiconductor material. The conductivity is giver in units of (Ω-cm)^-1 and is a function of the electron and hole concentrations and mobilities. We have just seen that the mobilities are functions of impurity concentration, conductivity, then is a somewhat complicated function of impurity concentration.

The reciprocal of conductivity is resistivity, which is denoted by ρ and is giver in units of ohm-cm. We can write the formula for resistivity as

(2)

Figure 1.1 is a plot of resistivity as a function of impurity concentration in silicon germanium, gallium arsenide, and gallium phosphide at T = 300 K. Obviously, the curves are not linear functions of N_d or N_a because of mobility effects.

If we have a bar of semiconductor material as shown in Figure 1.2 with a volt age applied that produces a current I, then we can write

(3a)

and

(3b)

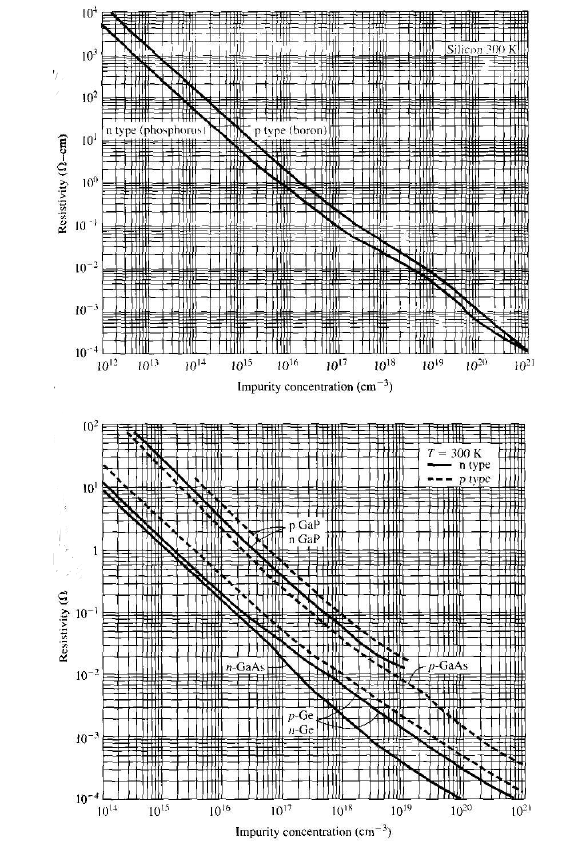

Figure 1.1 Resistivity versus impurity concentration at T = 300 K in (a) silicon and (b) germanium, gallium arsenide, and gallium phosphide.

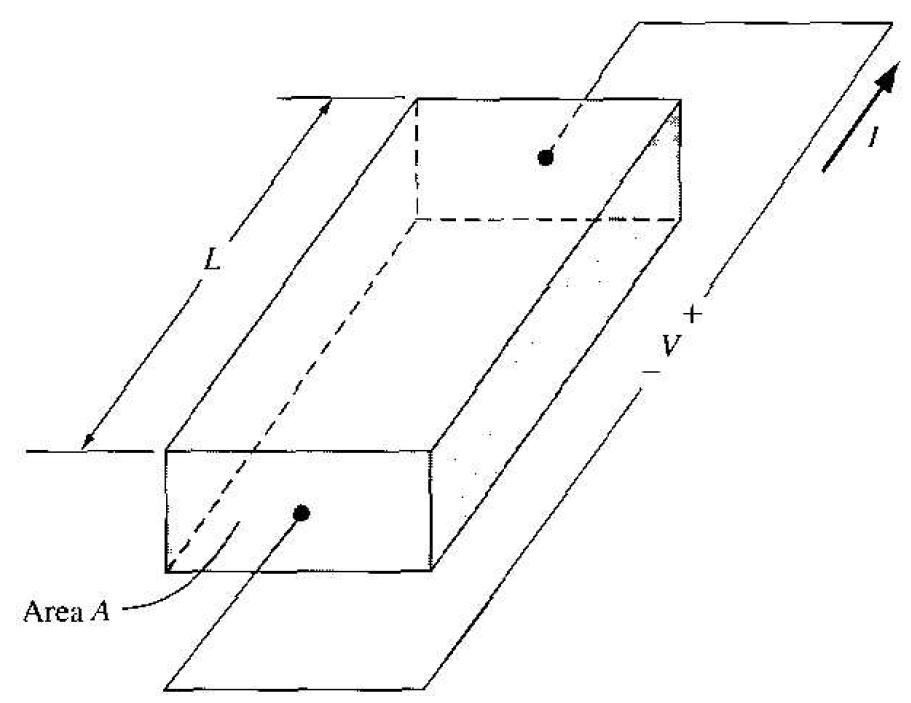

Figure 1.2 Bar of semiconductor material as a resistor.

We can now rewrite Equation (1) as

(4)

or

(5)

Equation (3b) is Ohm's law for a semiconductor. The resistance is a function of resistivity, or conductivity, as well as the geometry of the semiconductor.

If we consider. for example, a p-type semiconductor with an acceptor doping N_a(N_d = 0) in which N_a >> n_i , and if we assume that the electron and hole mobilities are of the same order of magnitude, then the conductivity becomes

(6)

If we also assume complete ionization, then Equation (6) becomes

(7)

The conductivity and resistivity of an extrinsic semiconductor are a function primarily of the majority carrier parameters.

We may plot the carrier concentration and conductivity of a semiconductor as a function of temperature for a particular doping concentration. Figure 1.3 shows the electron concentration and conductivity of silicon as a function of inverse temperature for the case when N_d = 10¹⁵ cm^-3. In the midtemperature range, or extrinsic range, as shown, we have complete ionization-the electron concentration remains essentially constant. However, the mobility is a function of temperature so the conductivity

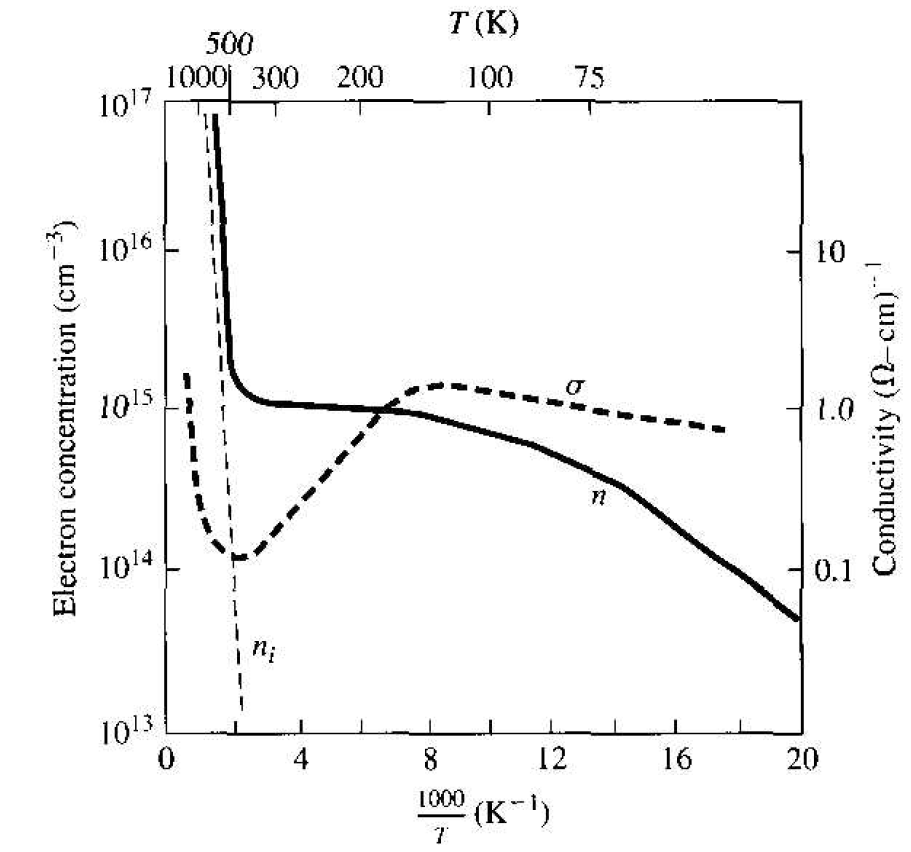

Figure 1.3 Electron concentration and conductivity versus inverse temperature for silicon.

varies with temperature in this range. At higher temperatures, the intrinsic cattier concentration increases and begins to dominate the electron concentration as well as the conductivity. In the lower temperature range, freeze-out begins to occur; the electron concentration and conductivity decrease with decreasing temperature.

For an intrinsic material, the conductivity can be written as

(8)

The concentrations of electrons and holes are equal in an intrinsic semiconductor, so the intrinsic conductivity includes both the electron and hole mobility. Since, in general, the electron and hole mobilities are not equal, the intrinsic conductivity is not the minimum value possible at a given temperature.
