Orbiting Charges and Multipole Radiation

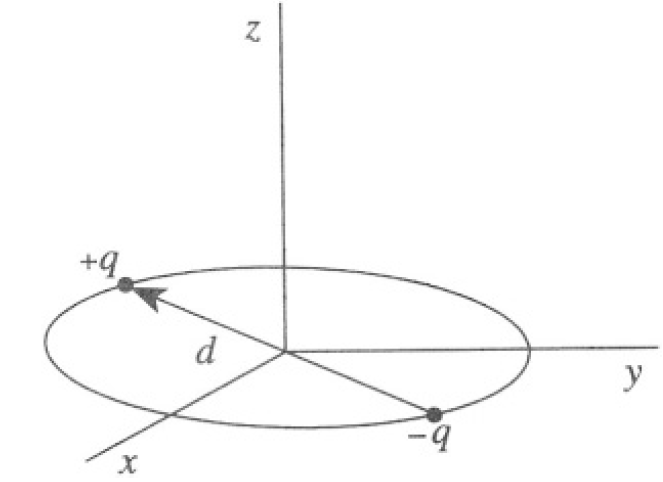

Charges +q and -q a distance d apart orbit around each other in the x-y plane (z = 0) at frequency ω(d << c/ω) (see Figure 1.1).

Figure 1.1

a) The emitted radiation is primarily confined to one multipole. Which one?

b) What is the angular distribution of the radiated power?

c) What is the total power radiated?

d) The plane z = -b is now filled with a perfect conductor (b << c/ω) What multipole radiates now?

SOLUTION

a, b) At r >> d the emitted radiation is confined to a dipole where is the wavelength. The vector potential of the system with dipole (r >> λ >> d), moment p at a distance r >> λ is given by

The magnetic field of the system

(1)

where p = qd is the dipole moment of the system, n is the unit vector in the direction of observation, and r₀ is the distance from the origin (see

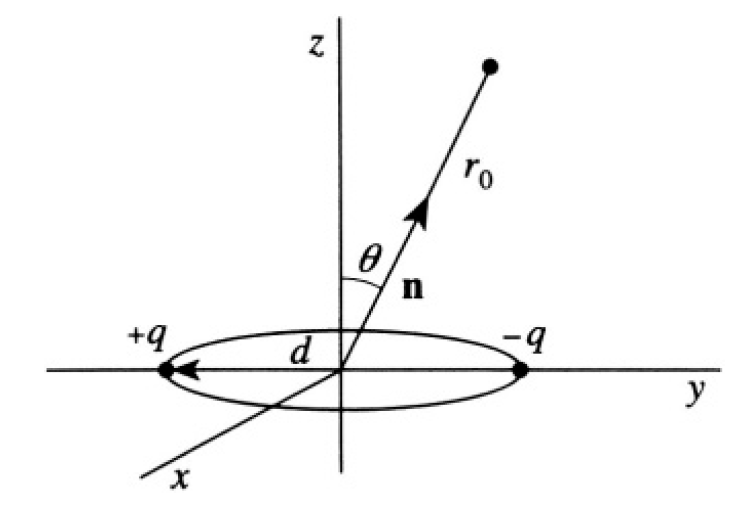

Figure 1.2a

Figure 1.2a). The energy flux is given by the Poynting vector S:

(2)

The radiated power in a solid angle dΘ is given by

(3)

Substituting (1) into (3), we obtain

(4)

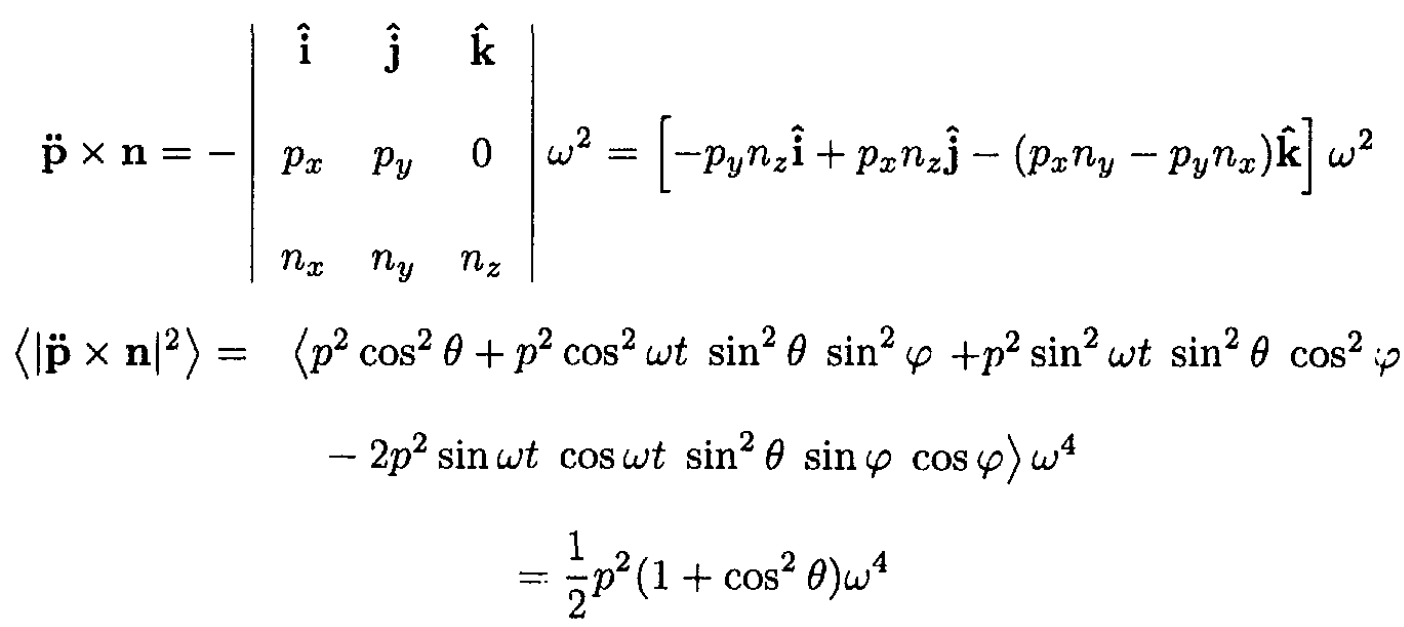

Noting that

we have

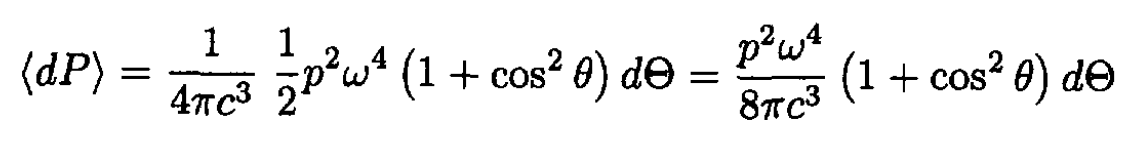

where we took the average over the period of revolution and used [sin² ωt] = [cos² ωt] = 1/2 and [2sin ωt cos ωt] = [sin 2ωt] = 0. So form (4)

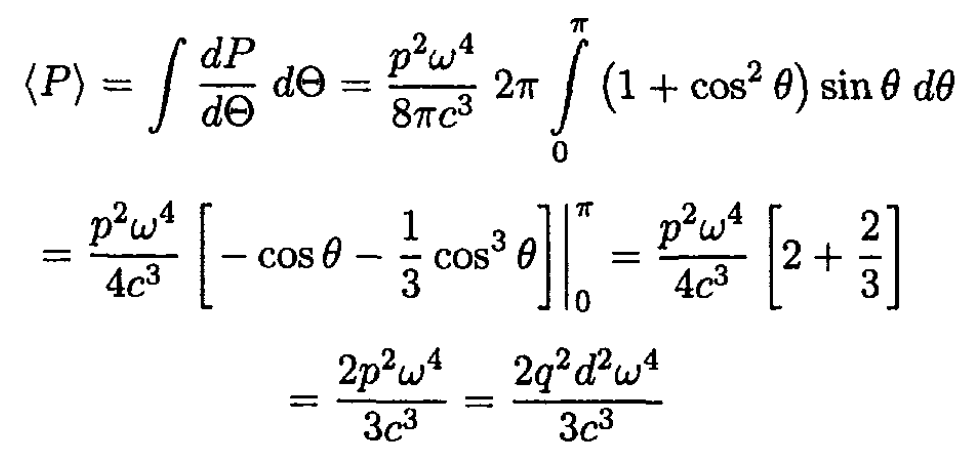

c) The total power radiated is

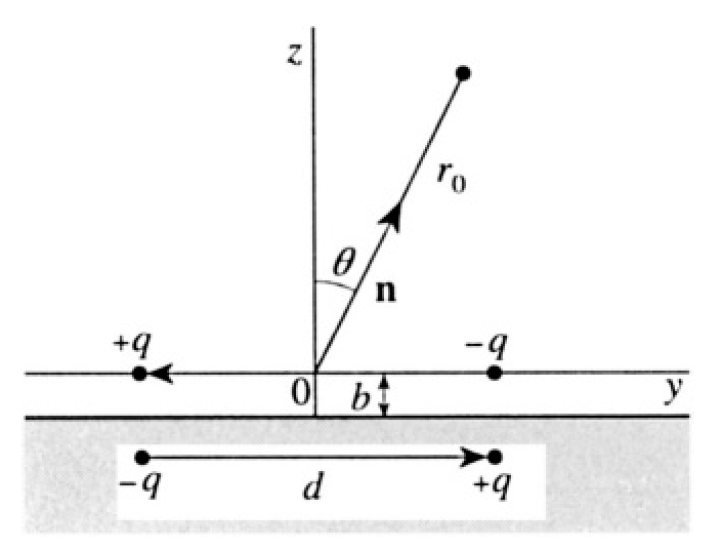

d) When the plane z = -b is filled with a perfect conductor, we have an image charge for each of the charges +q and –q, and the total dipole moment of the system becomes zero (see Figure 1.2b). The next nonzero multipole in this system must be quadrupole with quadrupole moment D_αβ:

Figure 1.2b
